Name: Dsan PC-MINI-AS3 PerfectCue Mini System with Compact Cue Light and PC-AS3 Wireless Transmitter
SKU: 729883

Product Details ＋

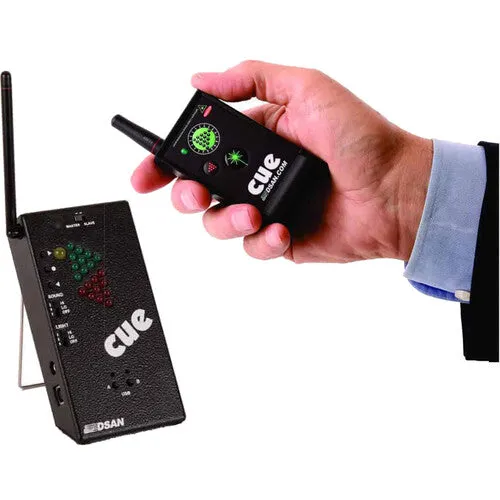

The Dsan PerfectCue Mini is a wireless audio and visual cueing system that enables a speaker to send cues to a projectionist using the wireless handheld transmitter or to remotely control presentation software via dual programmable USB ports. This configuration includes a compact Cue Light receiver and a pocket-size PC-AS3 wireless transmitter with Forward and Reverse buttons, plus a green laser for pointing things out. The high-quality RF performance ensures that wireless communication between the transmitter and the Cue Light receiver is reliable at 300'.

The PerfectCue Mini receiver is designed with a fold-away bracket so that the unit can slide easily into a laptop carrying case. It is compatible with all the PerfectCue transmitters and may interconnect with other PerfectCue Minis, PerfectCues, or any of the company's Cue Light accessories via Cat 5 or XLR cable. The receiver features an audio output with volume control for use with headphone or earpiece monitoring.

Flexible Visual Cueing

Range of transmitter to Cue Light: 300'
Light behavior, sounds, and keystrokes are programmable with free app
Onboard speaker volume control: High, Low, and Off
Lights control: High, Low, and Off
Local switch control: Forward (green), Back (red), Blank (amber), USB engaged/disengaged
Ports: 2x USB Type-B, Serial-XLR female, Serial-RJ45, 3.5mm headphone jack
Cue Light power: USB or power supply (included)
Rf communication: 433.92 MHz , 256 possible channels
Waterproof, dustproof, crushproof customized hard case

PC-AS3 Three-Button Wireless Transmitter with Laser

Large, dot-embossed, tactile-feel buttons
One "Forward" command button to indicate "next slide"
One "Reverse" command button to indicate "previous slide"
One "Green Laser" command button for pointing out
Powered by two CR2032 coin batteries plus a CR123 battery to power the laser

DIP Switch Settings

Users can establish the relationship between transmitter and receiver via DIP switch settings.

One transmitter can control multiple Cue Lights
One Cue Light can be controlled by multiple transmitters
One Cue Light can control two computers in sync
One Cue Light can control additional Cue Lights (by wiring together the Cue Lights) PerfectCue systems can work in proximity without interfering with one another

Specifications

Compatibility

Not Specified by Manufacturer

Inputs / Outputs

USB I/O	2 x USB-B Female Output
Audio I/O	1x 1/8" / 3.5 mm TRS Headphone Output

Power

Power Source	USB, AC Adapter with Power Brick (Included)
Battery Type	2x CR2032
AC Input Power	110 to 220 VAC, 50 / 60 Hz
DC Input Power	12 VDC at 1 A

Physical

Mounting	1 x Fold-Away Bracket
Cable Length	6' / 1.8 m
Dimensions	6 x 3.75 x 1.25" / 15.2 x 9.53 x 3.17 cm (Cue Light) 5 x 2 x 0.75" / 12.7 x 5.1 x 1.91 cm (Transmitter) 14.5 x 11.5 x 4" / 36.8 x 29.2 x 10.2 cm (Case)
Weight	6 lb / 2.7 kg (with Case)
