Product Details
＋

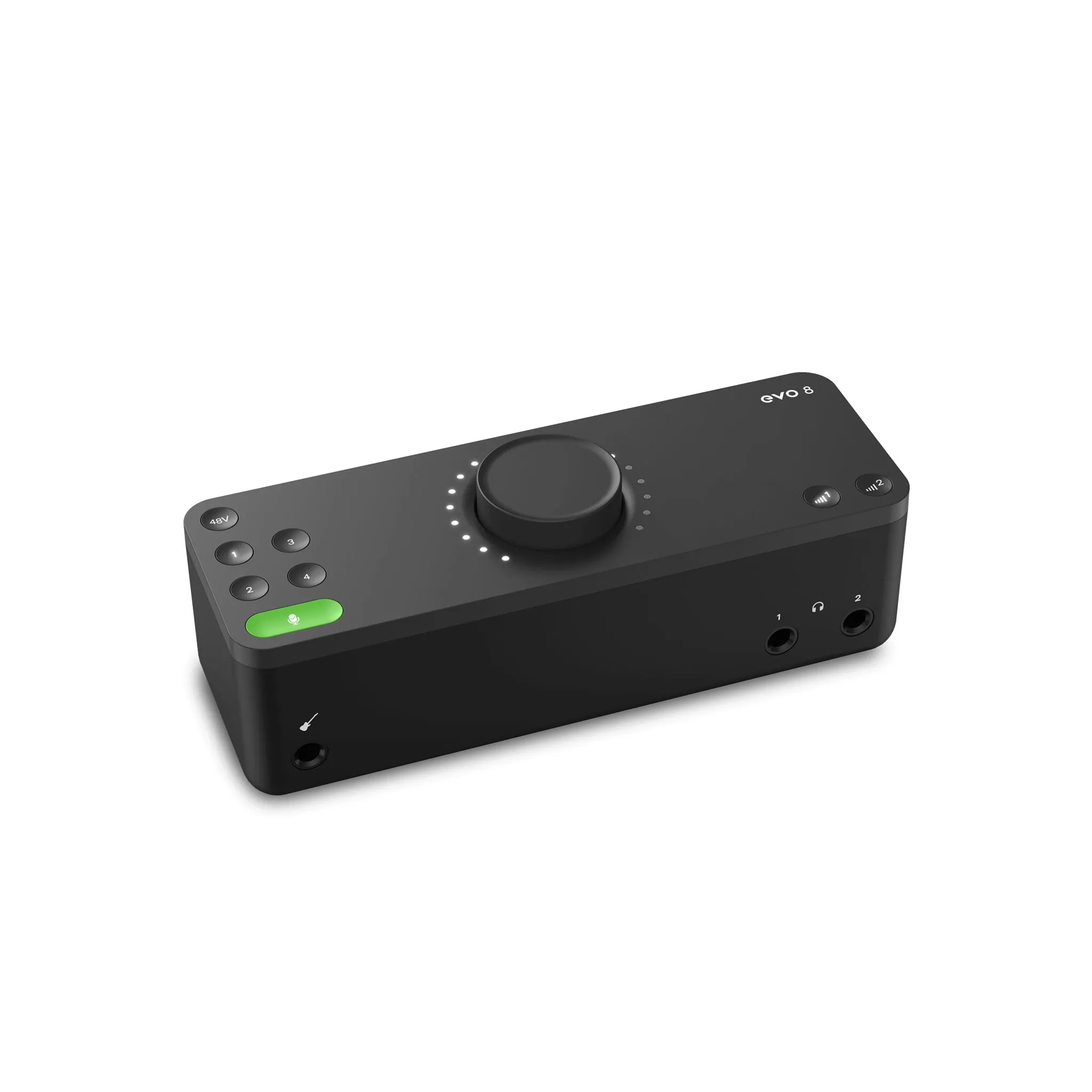

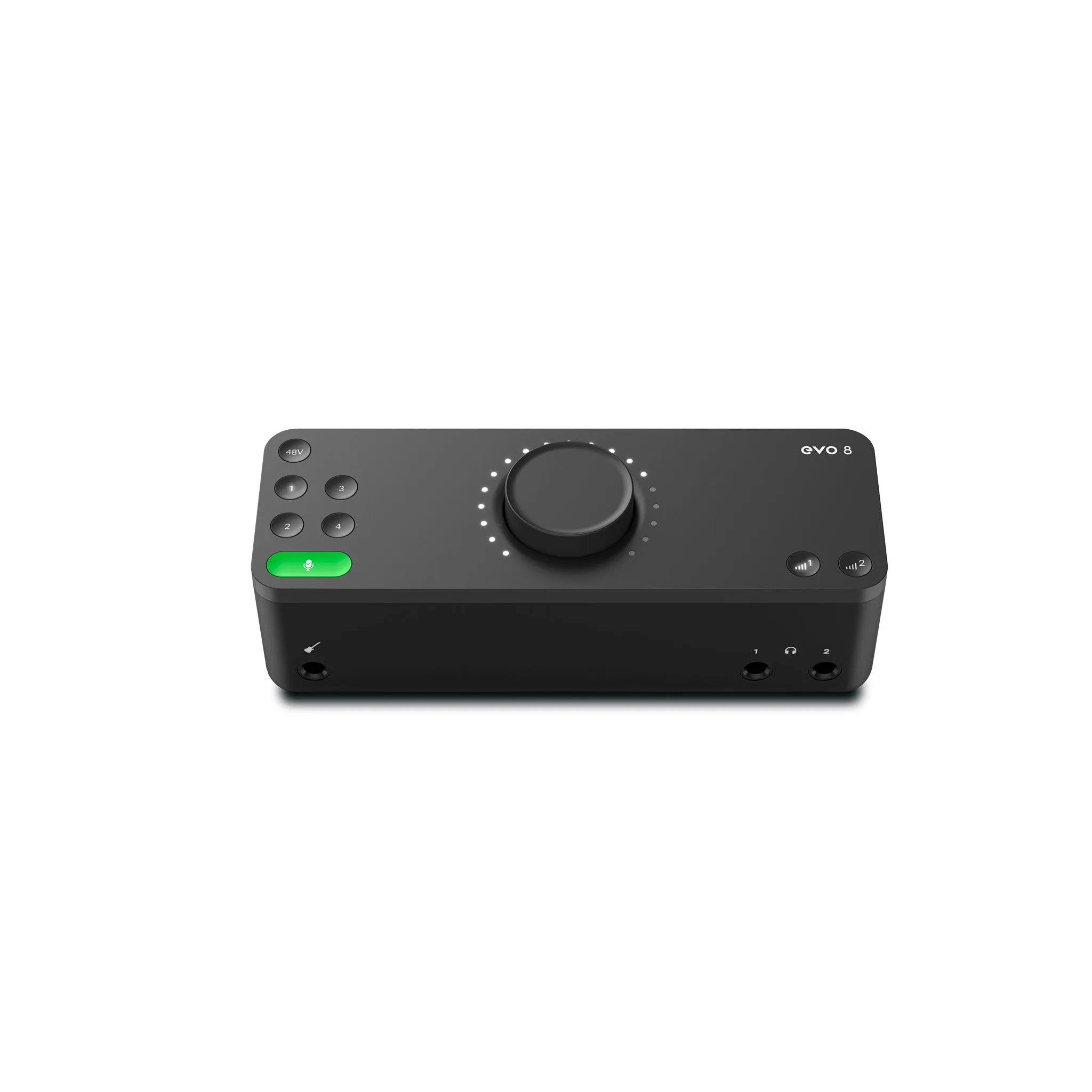

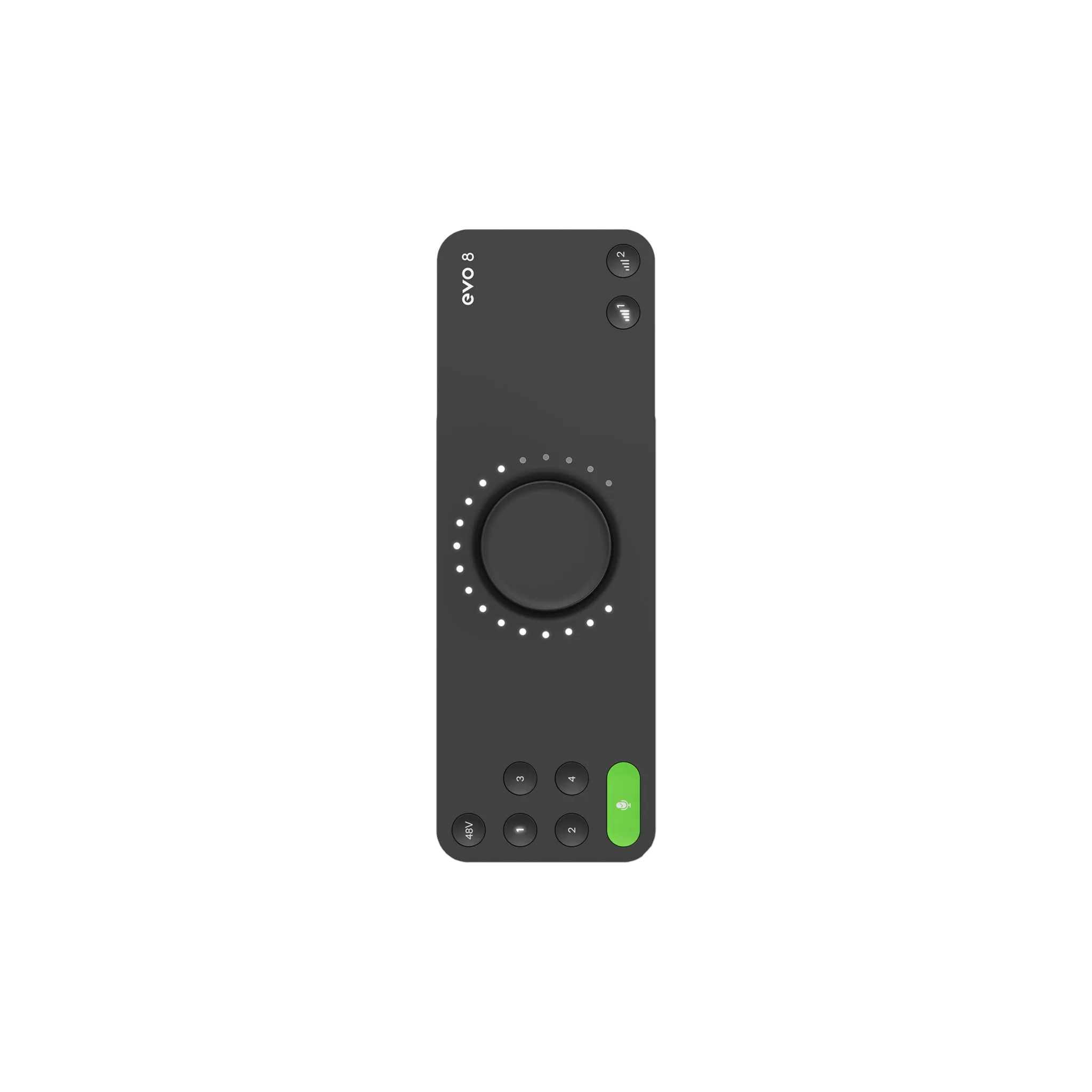

Capture your microphones and instruments and start recording audio directly to your computer with EVO 8’s intuitive feature set audio interface. The EVO 8 audio interface has all of the innovative new features found on EVO 4 but provides additional inputs and outputs alongside unrivalled performance and functionality – all off bus power.
Specifications- Mic Gain Range: 58dB
- Line Gain Range: 58dB (-10dB pad)
- Phantom Power: 48V /-4V @ 10mA/Channel (only 2 channel available on USB-A host computers
- Mic EIN:
- CMRR: >85dB @ 1kHz
- Maximum Input Level: 16dBu
- Input Impedance (Mic): >3k? Balanced
- Input Impedance (Line): >10k? Balanced
- Frequency Response: /-0.5dB 10Hz to 40kHz
- Crosstalk:
- THD N @ 0dBu (1kHz): <0.0015%
- SNR: 100dB
- XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
- 1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
- Item Type: Audio Interface
