BIG PERFORMANCE. SMALL PACKAGE.

Crisp, clear video is the perfect complement to Poly’s superior sound. Now you can get it in a camera built for small spaces. The EagleEye Mini USB camera adds business-class HD video to computers and conference room solutions—pair it with the Trio Visual or VVX 501/601. Better camera, better collaboration.

KEY FEATURES :

• BUSINESS-CLASS HD VIDEO: 1080p video, electronic pan, tilt and 4x zoom for an image that remains at the highest capable resolution even when it is fully zoomed
• RELIABLE SECURITY: integrated privacy shutter and video 2 color/4 state mute/ unmute LED indicator
• PERFECTLY COMPLEMENTS: Poly headsets, VVX desktop phones, USB and Bluetooth® speakerphones

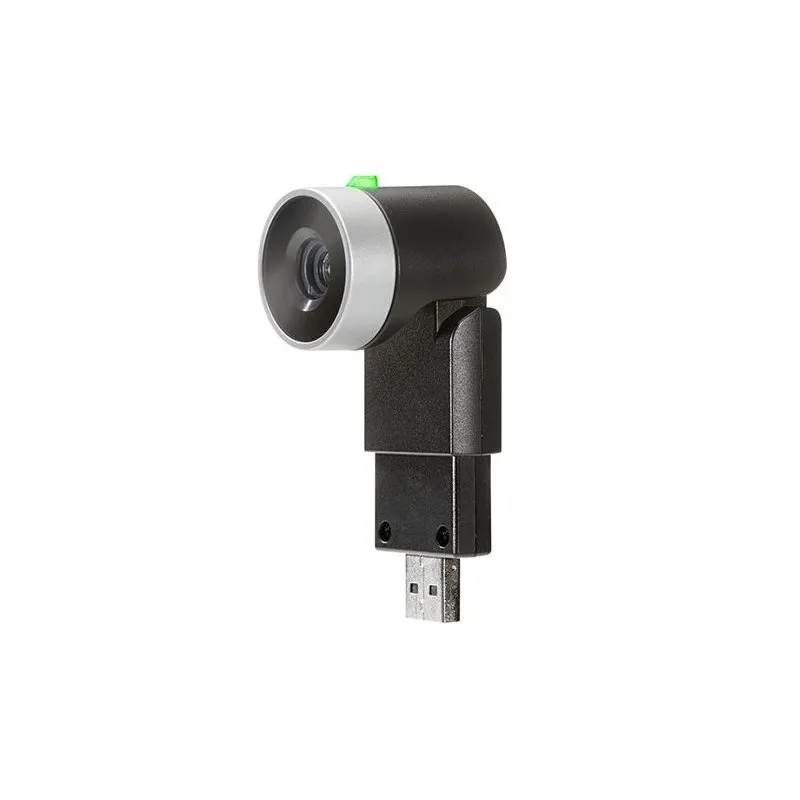

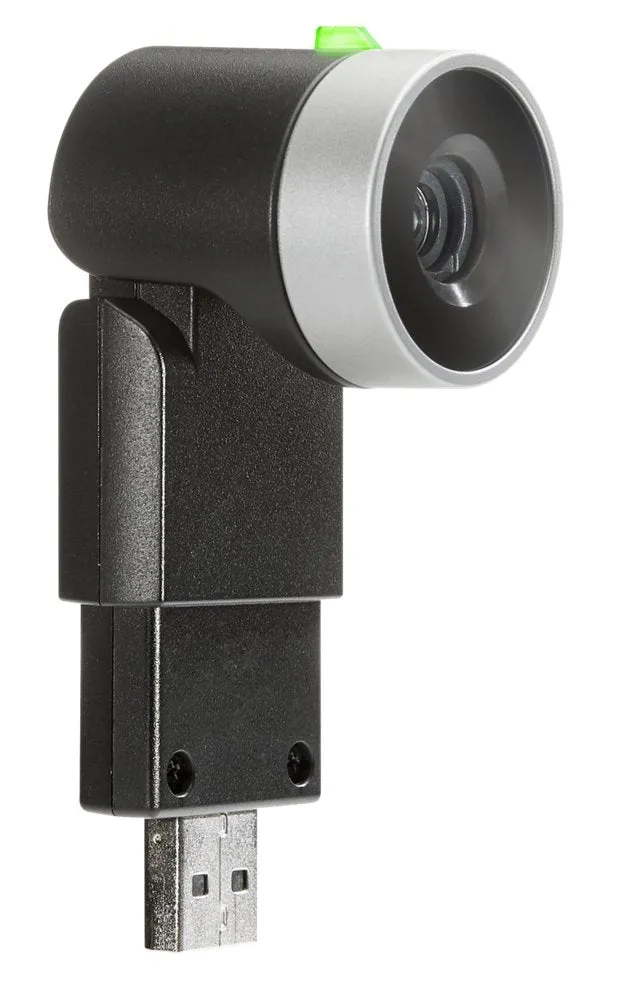

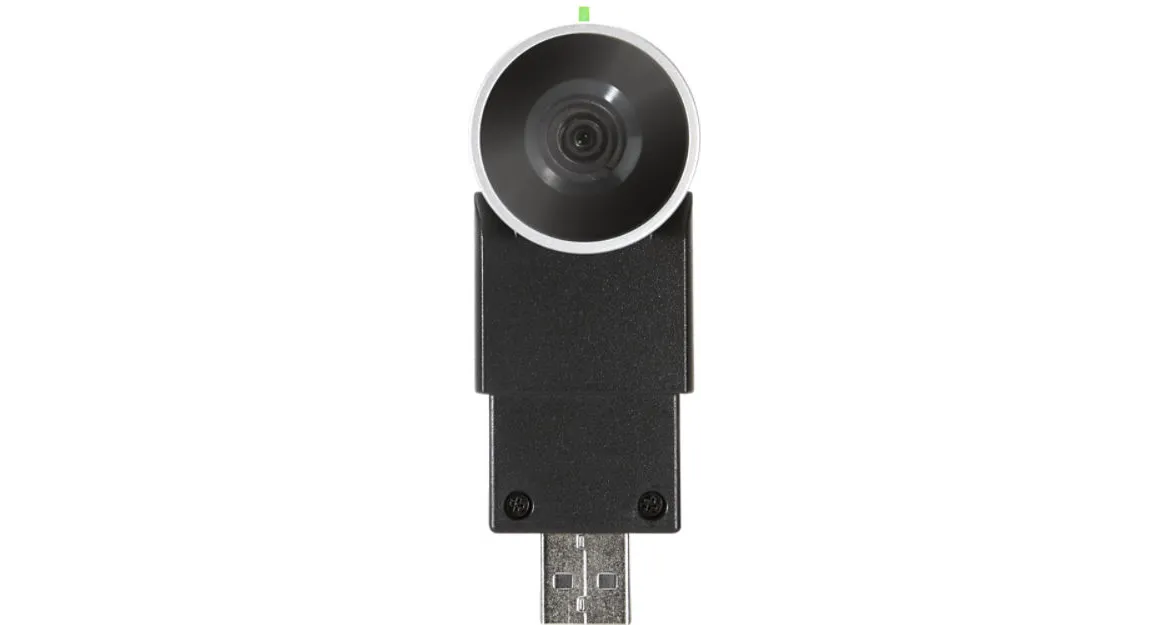

• COMPACT DESIGN: Simple, fast installation with a single USB cable

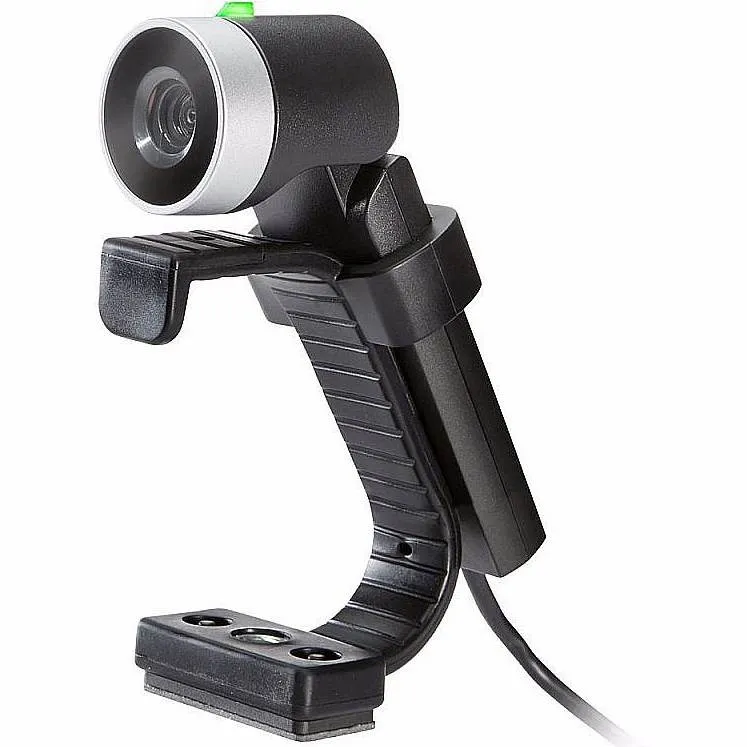

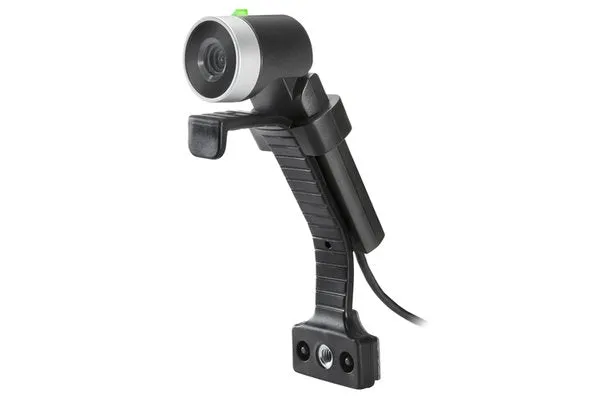

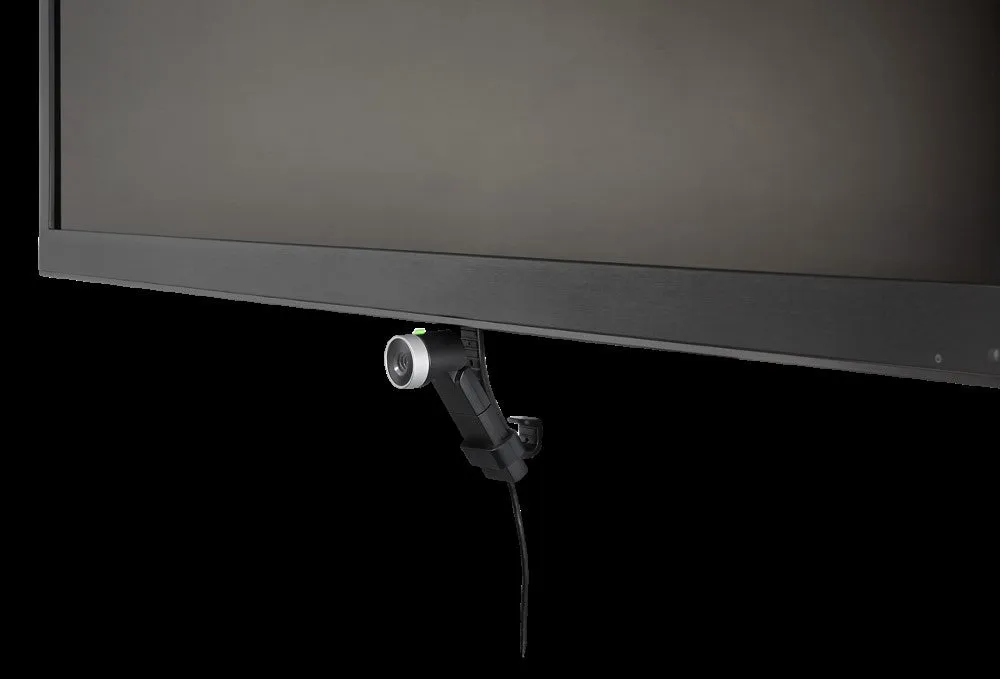

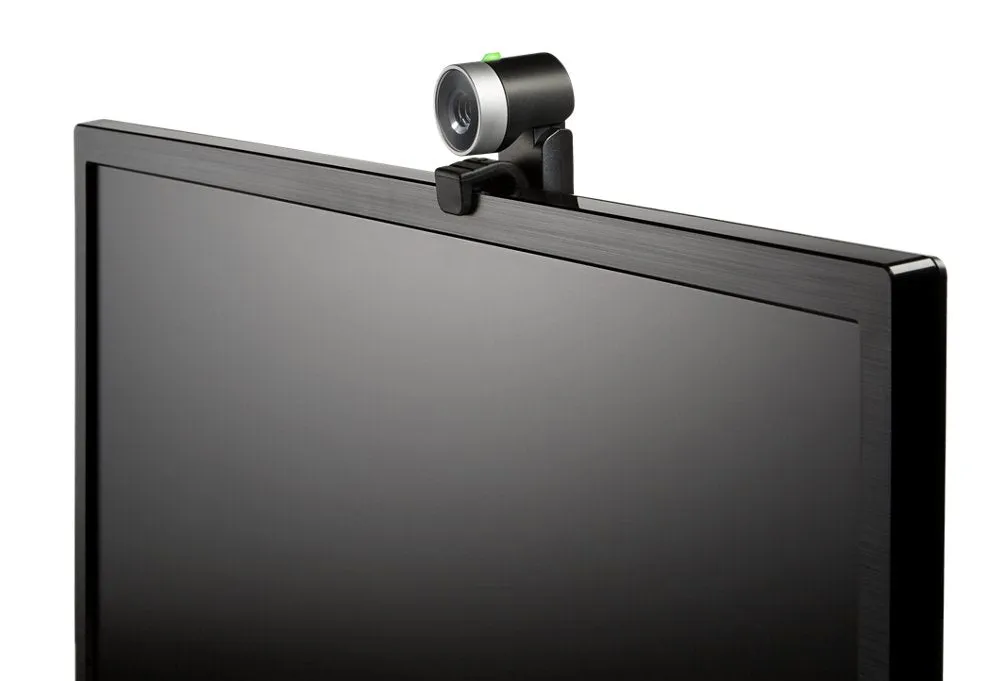

• FLEXIBLE MOUNTING OPTIONS: on the wall or on the top or the bottom of a display, for comfortable eye-contact for everyone in the room.
• SMALL BUT POWERFUL: Simulcast video streams for remote participants, uncompressed local video loopback, normal/ full/ crop video screen modes, & adjustable levels and frame rate for the best video performance possible.

SPECIFICATIONS:

CAMERA:

• f/2.0 aperture
• 4 mega pixel sensor
• Vertical tilt angle adjustable from 6° (up) to –22° (down)
• 73.7° HFoV/ 82°DFoV
• Automatic exposure and white balance
• Autofocus, 8cm-infinity
• 4x electronic zoom (1.4x lossless)

INTERFACE:

• USB 2.0 (UVC 1.5 and UVC 1.1 compliant)

AUDIO:

• No built-in microphones

COMPATIBLE WITH:

• Poly VVX® 601 v 5.87.1 or above
• Poly VVX® 501 v 5.8.1 or above
• Poly Trio™ 8500* v 5.7.1 or above
• Poly Trio™ 8800* v 5.7.1 or above
• Polycom RealPresence® Desktop for Windows® and Mac® v 3.9.0 or above
• Polycom VoxBox v 1.0.1 or above

*Requires Polycom Trio™ Visual

CAMERA FIRMWARE UPDATES:

• The EagleEye Mini USB camera receives firmware updates through software updates for the connected VVX business media phone or Polycom Trio system.

CONTENT VIDEO RESOLUTION:

• 24-bit true color
• Supports up to 1080p @ 30fps transmit video (H.264)
• Multicast video streams

VIDEO STANDARDS:

• H.264 AVC, H.264 high profile encoding
• H.264 SVC for Skype for Business encoding
• RGB and YUV raw video

DIMENSIONS (W X H X D):

• 177.8 x 78.74 x 63.5 mm (7 x 3.1 x 2.5 inches)

POWER CONSUMPTION:

• 5V @ <500mA via USB port

WARRANTY:

• 2-year limited hardware replacement warranty against manufacturing defects
