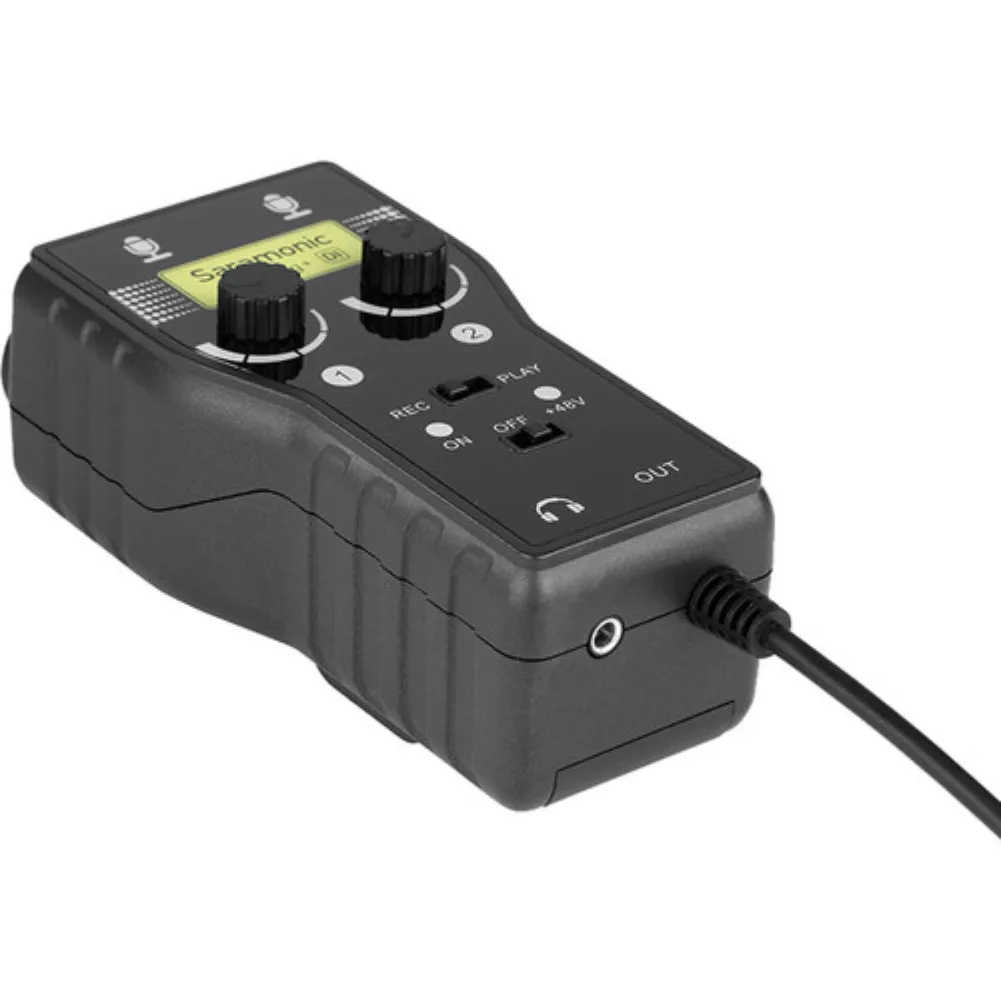

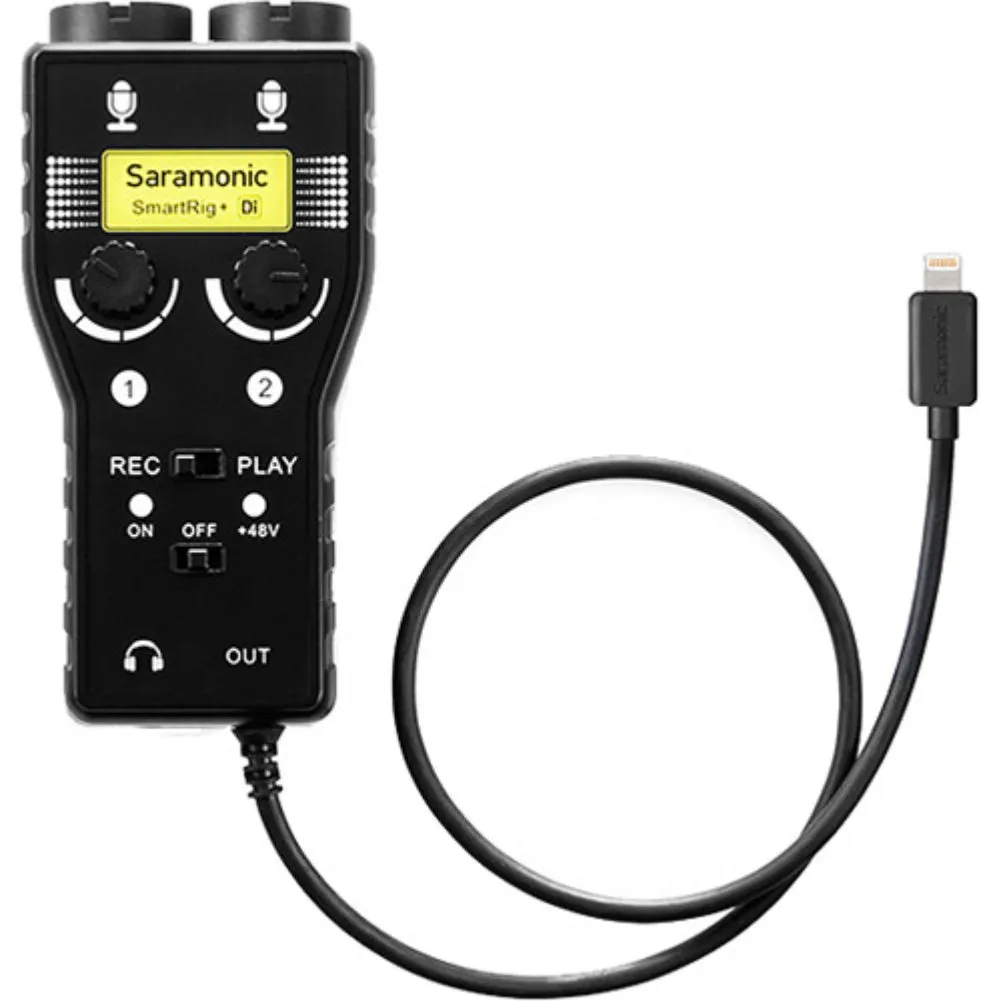

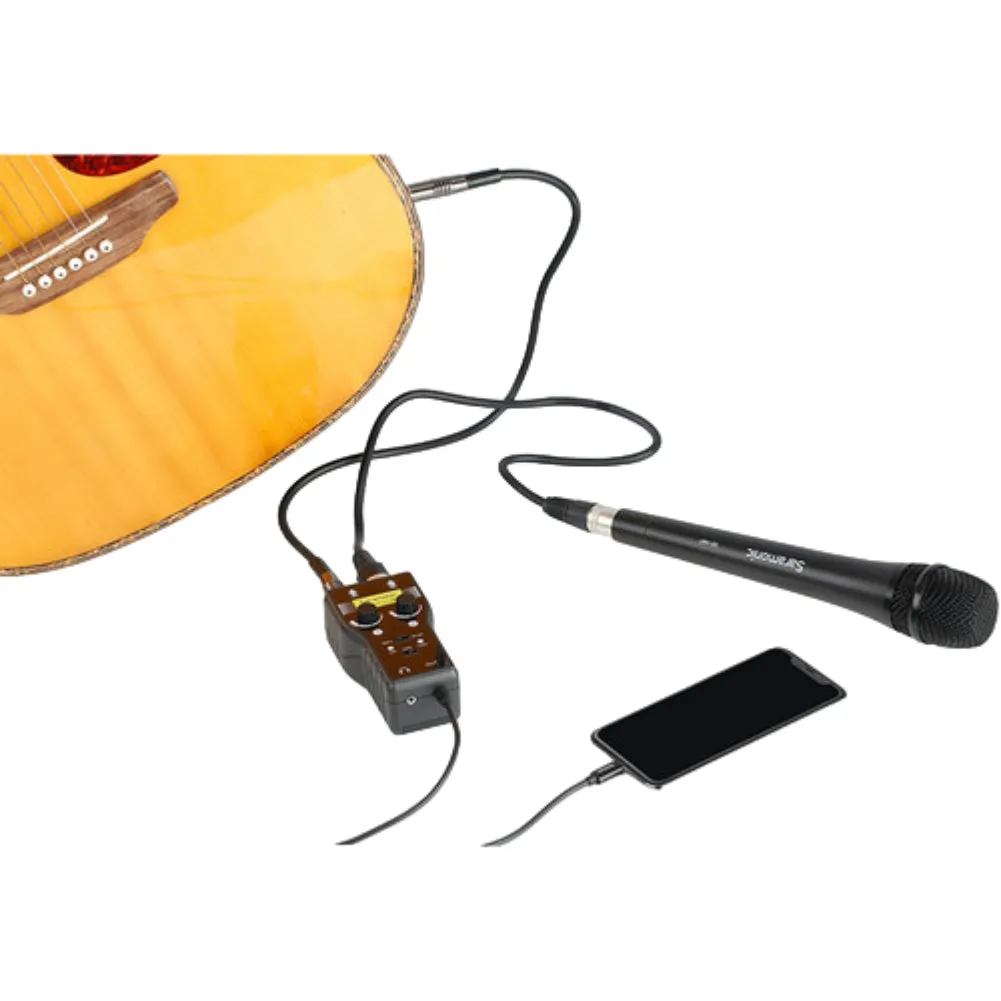

The SmartRig Di from Saramonic is a versatile two-channel audio interface designed to connect professional microphones or guitars to your iPhone, iPad, and iPod touch devices. Featuring a lightning connector output, this interface enables seamless recording of stereo sound or music directly to your iOS portable device, offering convenience and flexibility for various audio recording needs.

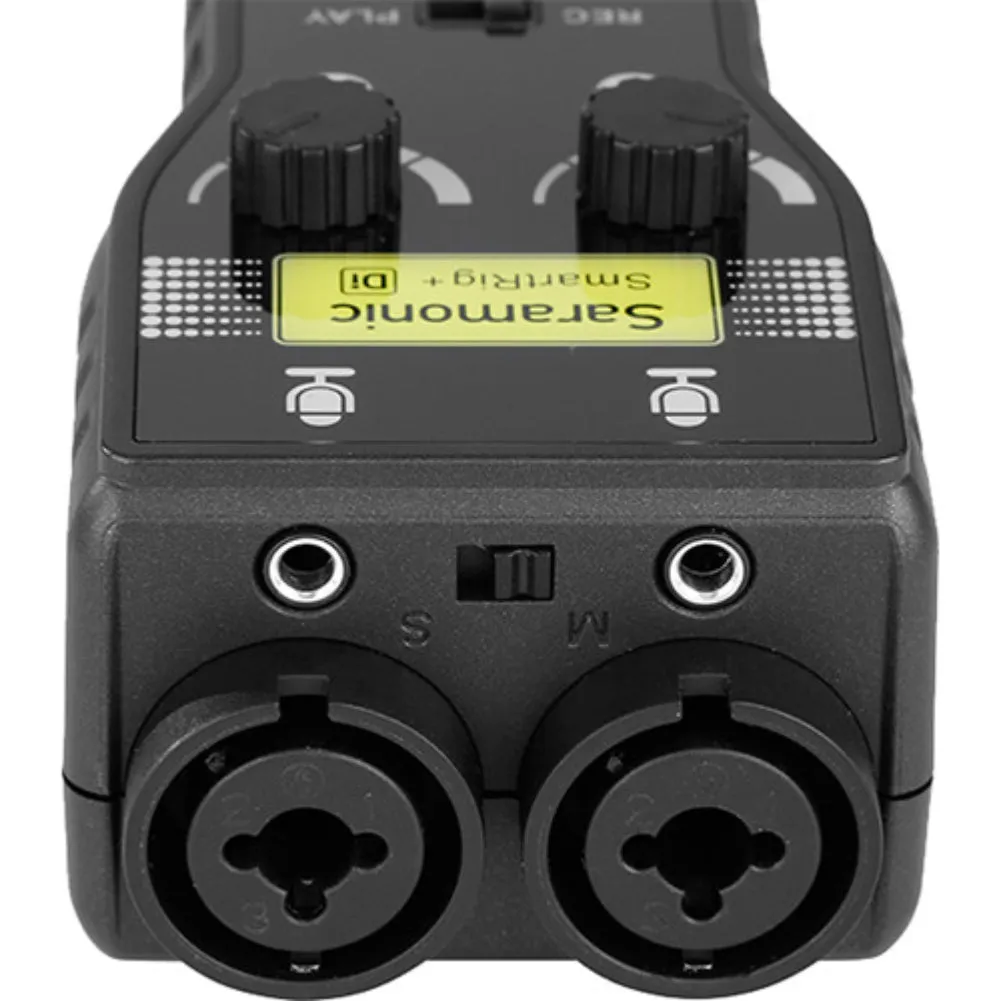

The SmartRig Di provides 48V phantom power for condenser microphones and is equipped with two XLR inputs, two 1/8" inputs, and two 1/4" inputs, and an 1/8" headphone output for real-time monitoring. There are two gain-control thumbwheels that make it easy to set levels for each channel separately.
Specifications
- 2 x 1/8" Mic Inputs
- 2 x XLR Mic Inputs
- 2 x 1/4" Guitar Inputs
- Lightning Output Connector
- Mono/Stereo Switch (M/S)
- Rec/Play Switch
- 48V Phantom Power
- 1/8" Headphone Output for Monitoring
- Gain Control
| Channels of I/O |
2 Input / 2 Output
|
| Maximum Sampling Rate |
48 kHz / 16-Bit
|
| Number of Microphone Inputs |
2 Preamps
|
| Input Level Adjustment |
2x Knob
|
| Gain/Trim Range |
Up to 25 dBu
|
| Analog Audio I/O |
1x XLR 3-Pin Mic Input
|
| 1x 1/4" TS Hi-Z Input | |
| 1x 1/8" / 3.5 mm TRS Input | |
| 1x 1/8" / 3.5 mm TRS Headphone Output | |
| Phantom Power |
48 V
|
| Host Connection |
1x Lightning
|
| Frequency Response |
20 Hz to 20 kHz ±0.5 dB
|
| SNR |
78 dB (-30 dBu Input, 1 kHz)
|
| THD |
< 0.01% (-30 dBu Input, 1 kHz)
|
| Sample Rates |
44.1 / 48 kHz
|
| Bit Depths |
24-Bit
|
| OS Compatibility |
iOS
|
| Mobile Device Compatibility |
iPhone
|
| iPad | |
| iPod Touch | |
| Required Hardware |
Lightning Port
|
| Internet Connection |
Required for Software/Driver Download
|
| Power Requirements |
Battery
|
| Current Consumption |
13 mA
|
| Battery Type |
1x 9V
|
| Dimensions |
12 x 4 x 4 cm
|
| Weight |
130.0 g
|
What's Included
1 x Saramonic SmartRig Di, Two-Channel Mic and Guitar Interface with Lightning Connector
